AUTOMATIC CEMENT COMPRESSION MACHINES
Standard: BS EN 196-1, BS 4550, ASTM C-109, BS EN 12390 Class 1

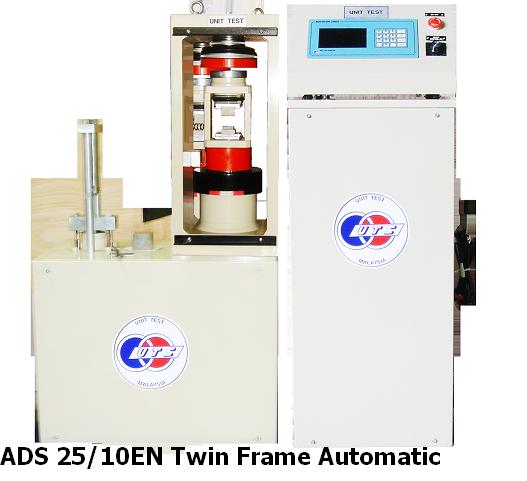

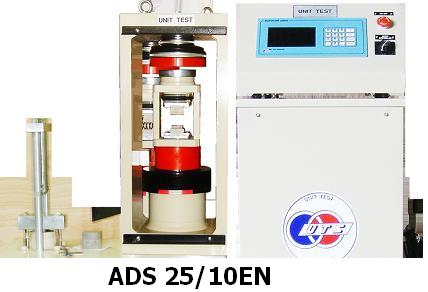

ADS 25/10EN AUTOMATED 250/10kN (TWIN FRAME) CEMENT / MORTAR TEST MACHINE EN 196-1
The Automatic Compression / Flexural Machine is designed to test mortar and cement specimens according to EN 196-1 requirements. The loading rate are automatically control by microprocessor technology 250kN is for Compression, 10kN is for Flexural Test.
l Fully Automatic Test with microprocessor control
l Measurement unite kN, lbf selectable
l Calibration Accuracy to EN 12390 Class 1.0, ASTM E4 and also ISO 370
l Meet EN 196-1, BS 3892, ASTM C 109 and BS 4550
l Large Digital Display
l Flexural range: 0-10kN x 0.001kN
l Compression Range: 0-50kN x 0.01kN, 50-250kN x 0.1kN
l Flexural Measurement Range: from 0.5 to 10kN
l Compression Measurement Range: from 2 to 250kN

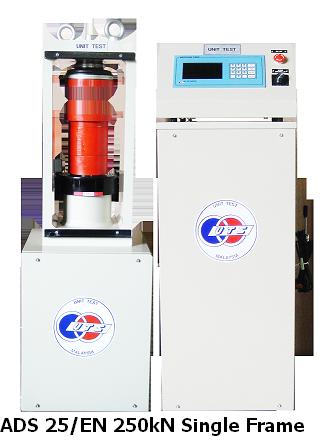

ADS 25/EN AUTOMATIC 250kN (SINGLE FRAME) CEMENT COMPRESSION TEST MACHINE AS ABOVE SPECIFICATION, BUT WITHOUT FLEXURAL LOAD FRAME
