S 60

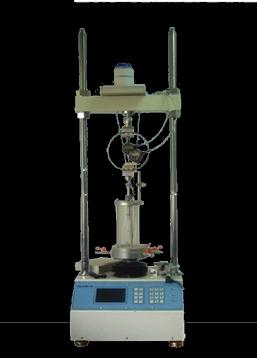

Digital triaxial 50kN capacity load frame
STANDARDS: ASTM D2850. D4767/BS 1377:8
This machine meet all the requirements of a soil laboratory.
the requirements of a soil laboratory.
it can accommodate all standard Triaxial Cells for testing soil specimens
up to 50. 100 mm. dia. by 200 mm length.
The test feed speed can easily be set thanks to a microprocessor and
conversation system with touch screen display and keyboard with user friendly
Infiinitesimal resolutions are, in this way, granted in real time.
The machine comprises limit switch of position security upper and lower platen.
– Maximum load frame capacity 50kN
– Infinitesimal testing speed from 0,00001 to 9.99999mm per minute
– Speed accuracy: +- 0.5%
– RS 232 port for connection to PC
– Vertical max. up to 810mm
– Horizontal: 340mm
– Platen diameter: 150mm
– Power supply t 240V 50 Hz 1ph
– Dimensions: 420x580x1410mm
– Weight: 110 Kg
S 60-01
Identical to S 60 but with 10kN capacity
S 60-02
Identical to S 60 but with 100kN capacity

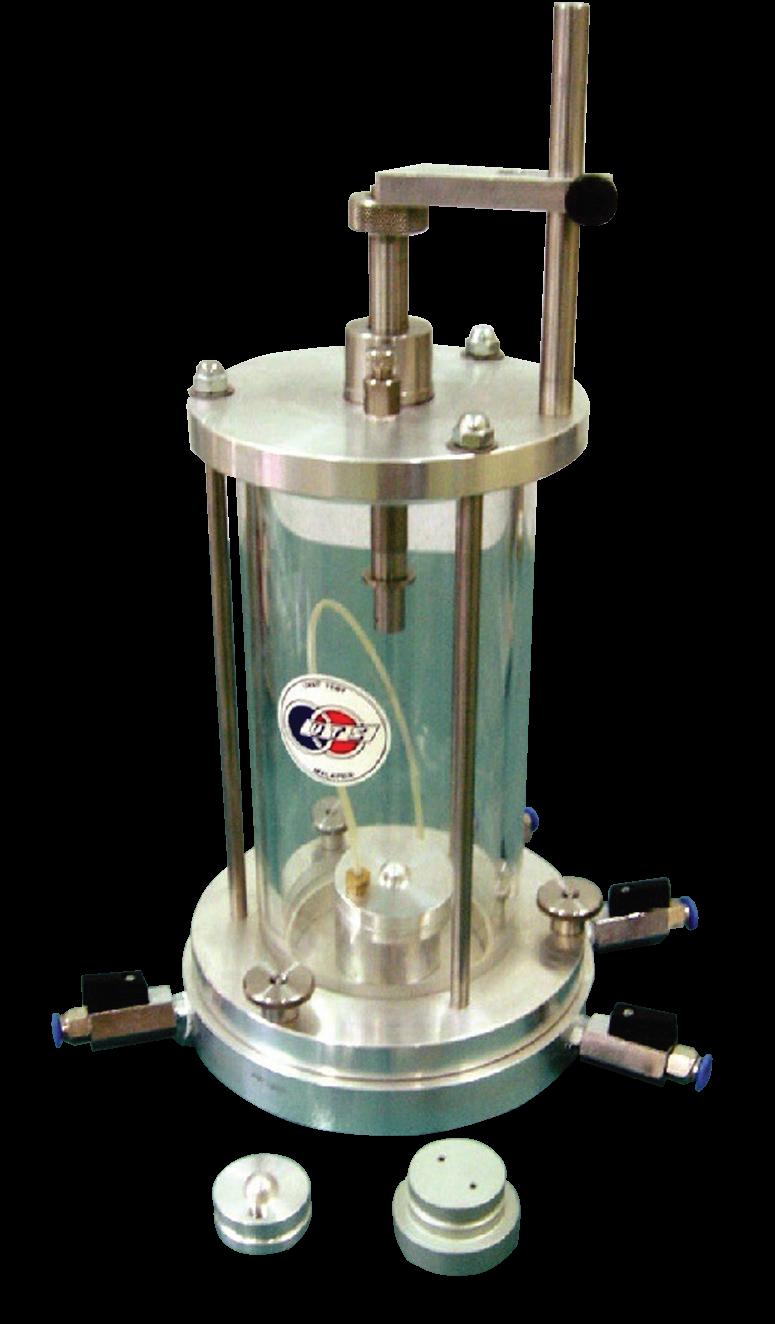

TRIAXIAL CELLS

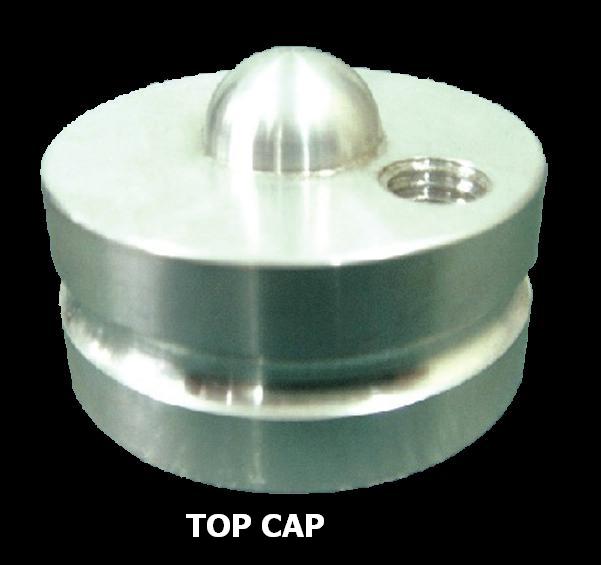

Top and low caps are made from aluminum alloy and cell cylinder
is made from high resistant clear acrylic materials.
The base of the cell “includes four valves”
back pressure, low drainage, pore pressure, cell pressure inlet.
Supplied complete with an adjustable dial gauge or displacement
transducer holder to measure the axial deformation of the specimen.
The triaxial cell is supplied “with out” caps, plinths, membranes,
membrane sealing rings, porous stones and dial gauges need to
be ordered separately.
| Models: |
S 62-01 |
S 62-02 |
| Max. specimen size mm |
70 x 140 |
100 x 200 |
| Max. cell pressure | 1700 kPa | 1700 kPa |
| Overal dimensions mm |
280 x 480 |
310 x 540 |
| Weight Kg |
9 |
17 |
* Remark: Cell mod. S 62-01 can be also used also for specimens
dial. 50 x 100 and 38 x 76mm. with accessories of suitable
diameter.
** Remark: Cell mod. S 62-02 can be also used also for specimens
dial. 70 x 140 and 38 x 76mm. with accessories of
suitable diameter.
